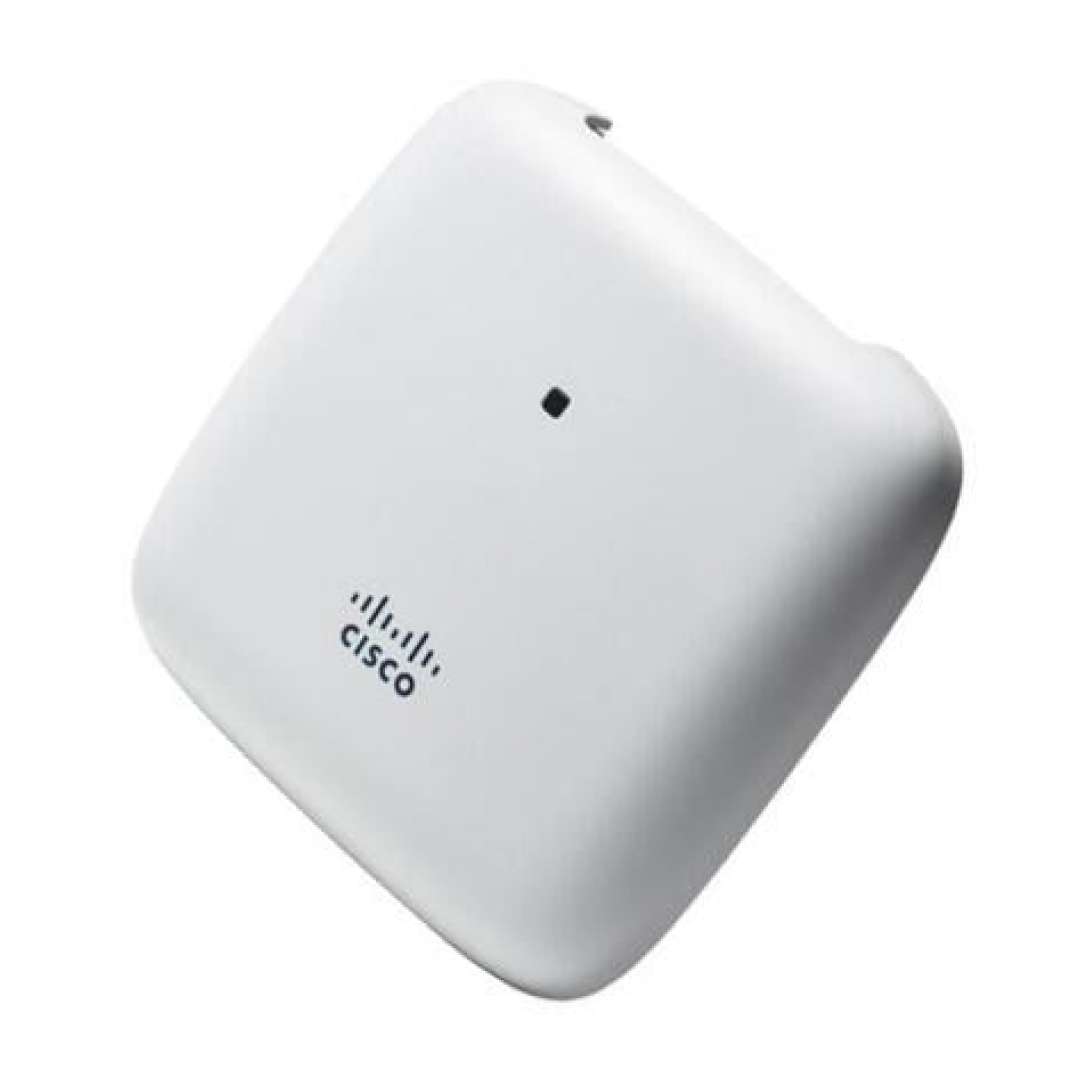

Cisco CBW140AC 802.11ac 2×2 Wave 2 Access Point Ceiling Mount
Features
- 802.11ac Wave 2 Wi-Fi – High-speed dual-band wireless performance
- 2×2 MU-MIMO Technology – Supports multiple devices with improved efficiency
- Ceiling-Mountable Design – Ideal for discreet and space-saving installations
- Power Over Ethernet (PoE) Support – Enables flexible and easy deployment
- Enterprise-Grade Security – Supports WPA2/WPA3 encryption, VLANs, and MAC filtering
- Seamless Roaming & Mesh Technology – Ensures consistent and stable Wi-Fi coverage
Price on Request
Limited Stock Available
OUR EXPERT SALES SUPPORT
Product Details
The Cisco CBW140AC 802.11ac 2×2 Wave 2 Access Point Ceiling Mount is a compact, high-performance wireless solution designed for small to medium-sized businesses. Featuring dual-band Wi-Fi 5 (802.11ac Wave 2) technology with 2×2 MU-MIMO, this ceiling-mounted access point delivers reliable and high-speed wireless connectivity. It supports speeds of up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, making it ideal for offices, retail stores, classrooms, and hospitality environments. The CBW140AC integrates advanced security features, cloud-based management, and PoE support, ensuring seamless deployment and easy scalability.
Specifications Table
| Category | Specification |
|---|---|
| Model | Cisco CBW140AC |
| Wireless Standard | 802.11ac Wave 2 (Wi-Fi 5) |
| Frequency Bands | Dual-band (2.4 GHz & 5 GHz) |
| Max Speed | 867 Mbps (5 GHz), 300 Mbps (2.4 GHz) |
| Antenna Configuration | Internal 2×2 MU-MIMO antennas |
| Ethernet Ports | 1 x Gigabit Ethernet uplink (PoE supported) |
| Security Features | WPA2/WPA3 encryption, MAC filtering, VLAN support |
| Power Options | PoE (Power over Ethernet) or DC power adapter |
| Mounting Options | Ceiling mount |
| Management | Cisco Business Mobile App, Web UI, Webex Control Hub |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Certifications | FCC, CE, RoHS compliant |
